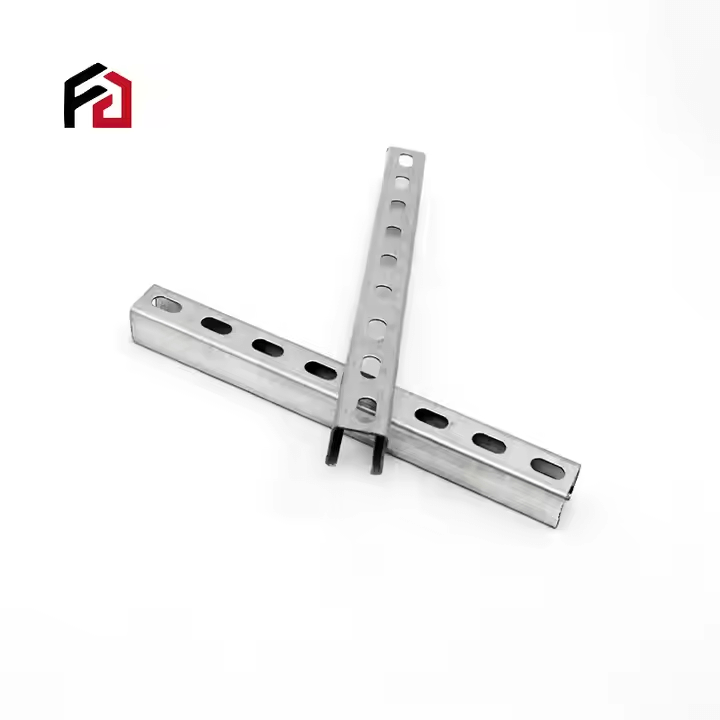

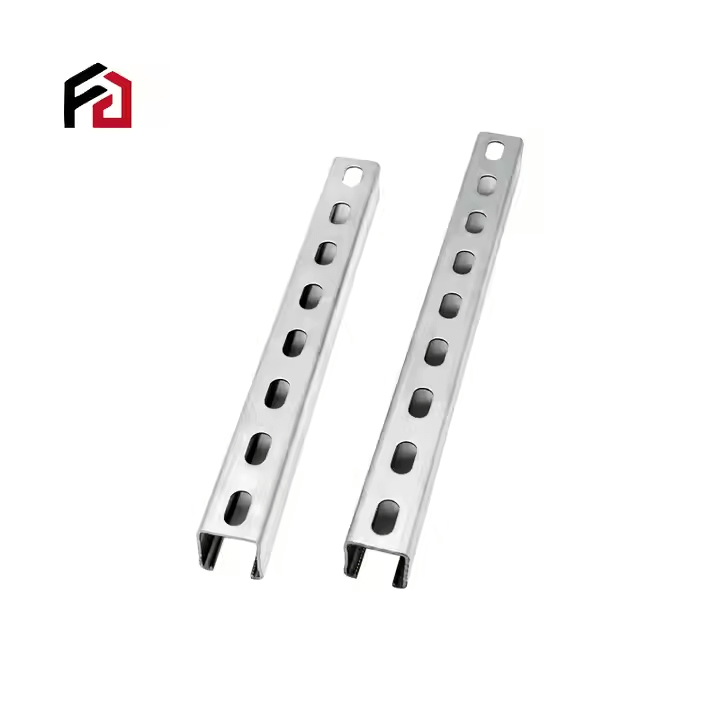

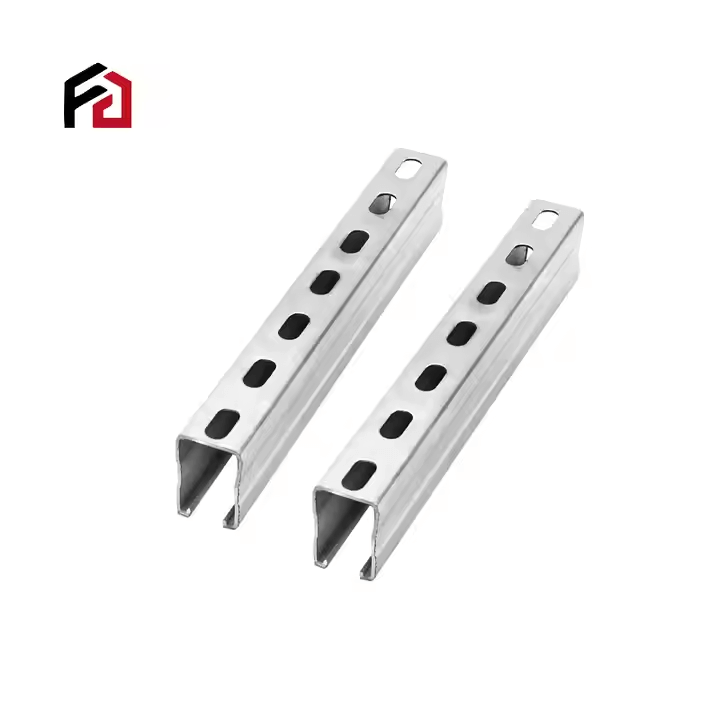

Pre galvanized C channel

pre galvanized C channel

is a standardized structural profile with a C-shaped cross-section,which has been precision machined and pre-galvanized surface treatment, and is suitable for a variety of scenarios such as photovoltaic brackets, seismic systems, pipe gallery supports, and hydropower facilities, integrating functionality, durability and corrosion resistance.

The material is made of Q235 high-quality carbon structural steel, which is processed by cold forming process. Its cross-sectional size is accurate and the wall thickness is uniform, which can ensure balanced force and provide a solid foundation for various support scenarios.
The product has three core advantages: first, the combination of high strength and light weight, the C-section design is 30% lighter than traditional steel, and the load-bearing performance is excellent, which can reduce the overall structural load; Second, the installation is efficient, and the standardized notch is suitable for all kinds of connectors,  which can be quickly assembled into a bracket system without on-site secondary processing; Third, it is highly compatible, and can be matched with accessories according to needs to meet the personalized support needs of different projects, while the pre-galvanizing treatment greatly improves its applicability in harsh environments.
In different fields, the pre-galvanized C channel performs well: in the photovoltaic field,  it can build a stable photovoltaic panel support frame, lightweight characteristics reduce the load on the roof, and the pre-galvanized layer can resist outdoor wind, frost, rain and snow erosion; As the core component of the seismic support, it can disperse the vibration energy, protect the safety of the pipeline, and the galvanized layer ensures its long-term and stable operation in complex environments; In the pipe gallery project, it provides continuous support for cables and pipelines, and the corrosion resistance is perfectly adapted to the underground humid environment; In hydropower projects, water pipelines and electrical equipment can be fixed to resist water erosion and extend the service life of facilities.
Conventional specifications cover a base width of 41 mm, a side height of 10-82 mm, a wall thickness of 0.5-3 mm,  and a length of ≤ 12 m. Each batch of products is accompanied by material certificate and galvanized test report, which meets engineering standards. Its standardized production, full-scene adaptability, and excellent corrosion resistance make it an efficient and reliable structural solution in modern infrastructure。Photovoltaic power station project: In the power station project, considering the risk of typhoon extreme weather in the local area, a 41*62*2mm hot-dip galvanized C channel was selected as the bracket, with a total length of 6000mm, and the reasonable size design made the material utilization rate high, and the back pull was made of 41*41*2mm hot-dip galvanized C channel and a specific reinforcement method, which effectively improved the stability of the bracket.
Seismic Mounting System Project: Constructed a seismic mounting system using pre-galvanized C-channels in a commercial building in an earthquake-prone area. The system uses the high-strength and standardized notches of the pre-galvanized C-channel, with professional seismic accessories, to effectively disperse the vibration energy in the event of an earthquake and protect the safety of firefighting, power, communication and other pipelines in the building. Even after many small earthquakes and daily vibrations, the scaffolding system remains stable, ensuring the normal operation of building facilities and greatly reducing the risk of secondary disasters that may be caused by earthquakes.
​
